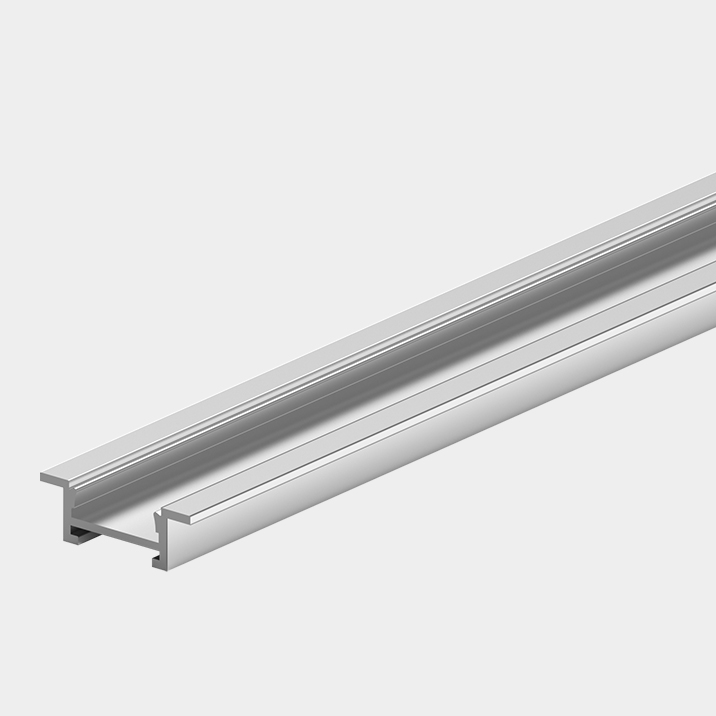

Kendo S Recessed

Static White & Dynamic Color

Warm DimTunable WhitePixelRGB/RGBWDamp
Overview
Specifications

Kendo S Recessed is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 37’ depending on output, Suitable for millwork, architectural reveals, recessed, and accent lighting applications, Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less. Kendo S Recessed – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA.

  • Finishes: Aged Brass, Black, Bronze, Chrome, Matt Black, Polished Gold, Silver Anodized, Warm Nickel, White
  • CCT: 1800K, 1800K-2400K, 1800K-2700K, 1800K-3000K, 2200K, 2400K, 2700K, 2700K-6500K, 3000K, 3500K, 4000K, 4100K, RGB3000K
  • CRI: 98
  • Output Per: 3372.7 lm/m, 1028 lm/ft, 380.6 lm/m, 116 lm/ft, 419.8 lm/m, 128 lm/ft, 498.6 lm/m, 152 lm/ft, 554.3 lm/m, 169 lm/ft, 619.9 lm/m, 189 lm/ft, 626.5 lm/m, 191 lm/ft, 754.4 lm/m, 230 lm/ft, 908.6 lm/m, 277 lm/ft, 967.6 lm/m, 295 lm/ft, 1036.5 lm/m, 316 lm/ft, 1168 lm/m, 356 lm/ft, 1236.6 lm/m, 377 lm/ft, 1289.4 lm/m, 393 lm/ft, 1302.2 lm/m, 397 lm/ft, 1532.2 lm/m, 467 lm/ft, 1660.1 lm/m, 506 lm/ft, 1702.3 lm/m, 519 lm/ft, 1732.3 lm/m, 528 lm/ft, 2057.1 lm/m, 627 lm/ft, 2073.5 lm/m, 632 lm/ft, 2460.6 lm/m, 750 lm/ft, 2739.5 lm/m 835 lm/ft
  • Mounting: Recessed, Recessed Trimmed
  • Type: Linear Fixture
  • Input Voltage: Low Voltage
  • Color: Pixel, RGB/RGBW, Static White, Tunable White, Warm Dim
  • Wattage Per: 3.3 W/m, 1 W/ft, 6.7 W/m, 2 W/ft, 9.8 W/m, 3 W/ft, 13.1 W/m, 4 W/ft, 16.4 W/m, 5 W/ft, 19.7 W/m, 6 W/ft, 23 W/m, 7 W/ft, 26.3 W/m 8 W/ft
  • Rating: Damp
  • Lens Aperture: 11.9 mm 0.47 inch
  • Size: 17.5 mm 0.69 in
  • Height: 11.176 mm 0.44 in
  • Lens: Clear Lens, Flat Frosted Lens, Frosted Lens, Half-Frosted Lens, Medium Lens
  • Trim: Trimmed
  • Operating Temperature: -4°F to 104°F, -4°F to 113°F, -20-50 C, -4°F to 122°F, -4°F to 86°F, -4°F to 95°F
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Manufacturing Details: Made in America
  • Warranty: 7 years
  • Product Number: KRS
