Knife Edge

Static White & Dynamic Color

Warm DimTunable WhitePixelRGB/RGBW
Overview
Specifications

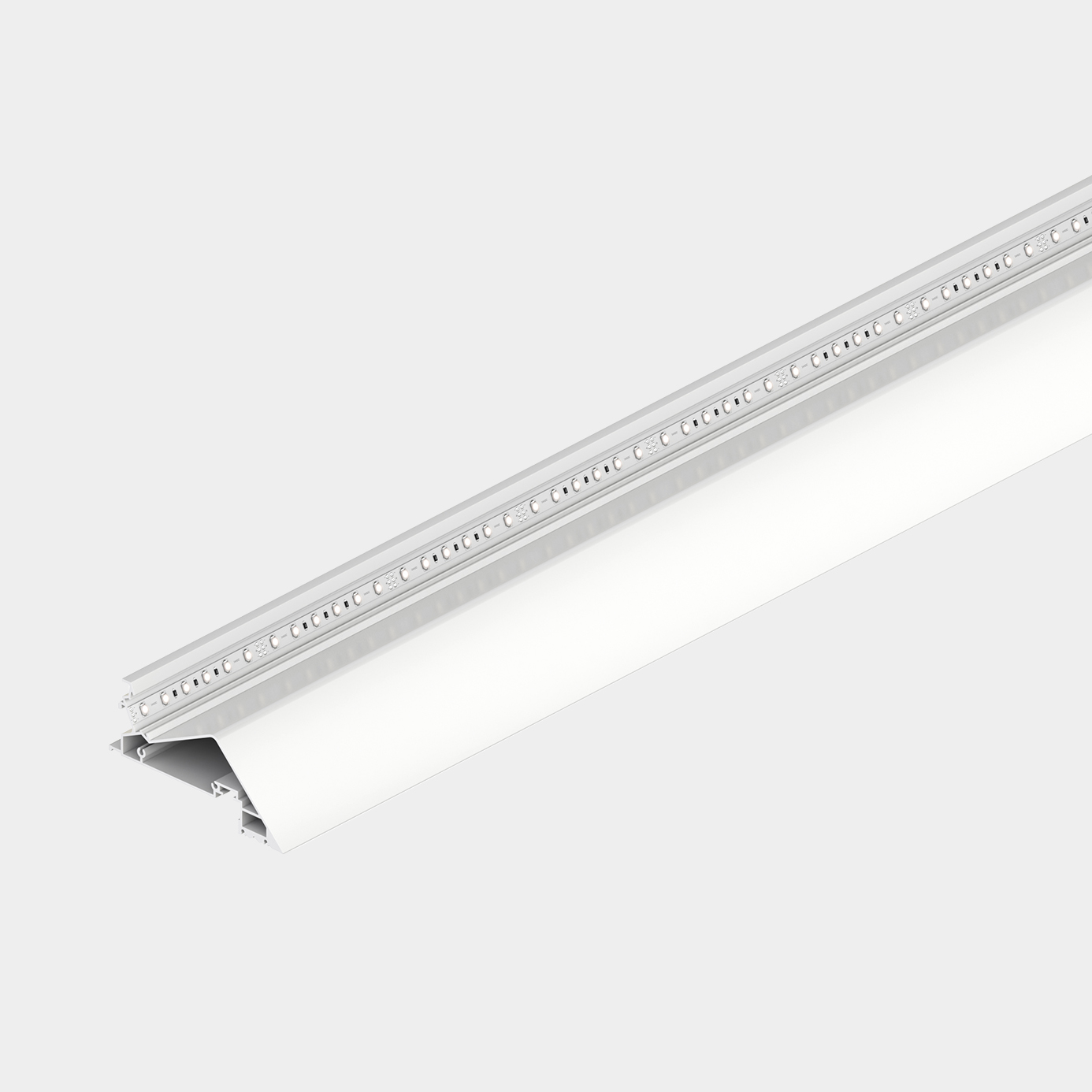

Knife Edge is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include The Luminii Knife Edge system produces an elegant, seamless sharp-edged architectural feature with uniform lighting on adjacent surfaces., Accepts 5/8” thick drywall on its underside.architectural reveals, accent lighting and surface mount applications, Create a soft diffused illumination, color tuning or an asymmetrical forward distribution by selecting the desired beam control offering.. Knife Edge – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA.

  • Finishes: Silver Anodized
  • CCT: 1800K, 1800K-2400K, 1800K-2700K, 1800K-3000K, 2200K, 2400K, 2700K, 2700K-6500K, 3000K, 3500K, 4000K, 4100K, RGB3000K
  • CRI: 98
  • Output Per: 337.8 lm/m, 103 lm/ft, 380.6 lm/m, 116 lm/ft, 383.9 lm/m, 117 lm/ft, 462.5 lm/m, 141 lm/ft, 554.3 lm/m, 169 lm/ft, 590.4 lm/m, 180 lm/ft, 633 lm/m, 193 lm/ft, 715.2 lm/m, 218 lm/ft, 754.4 lm/m, 230 lm/ft, 787.2 lm/m, 240 lm/ft, 797 lm/m, 243 lm/ft, 938.1 lm/m, 286 lm/ft, 1016.8 lm/m, 310 lm/ft, 1040 lm/m, 317 lm/ft, 1059.4 lm/m, 323 lm/ft, 1259.5 lm/m, 384 lm/ft, 1269.4 lm/m, 387 lm/ft, 1505.5 lm/m, 459 lm/ft, 1676.1 lm/m, 511 lm/ft, 2063.6 lm/m, 629 lm/ft, 232.9 lm/m, 71 lm/ft, 255.9 lm/m, 78 lm/ft, 305.1 lm/m 93 lm/ft
  • Mounting: Cove, Surface
  • Type: Linear Fixture
  • Input Voltage: Low Voltage
  • Color: Pixel, RGB/RGBW, Static White, Tunable White, Warm Dim
  • Wattage Per: 3.3 W/m, 1 W/ft, 6.7 W/m, 2 W/ft, 9.8 W/m, 3 W/ft, 13.1 W/m, 4 W/ft, 16.4 W/m, 5 W/ft, 19.7 W/m, 6 W/ft, 23 W/m, 7 W/ft, 26.3 W/m 8 W/ft
  • Lens Aperture: 12.7 mm 0.50 inch
  • Size: 129.5 mm 5.10 in
  • Height: 64.008 mm 2.52 in
  • Lens: Frosted Lens
  • Operating Temperature: -4°F to 104°F, -4°F to 113°F, -20-50 C, -4°F to 122°F, -4°F to 95°F
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Manufacturing Details: Made in America
  • Warranty: 7 years
  • Product Number: KE
