mCove

Static White & Dynamic Color

Warm DimTunable WhitePixelRGB/RGBWDamp
Overview
Specifications

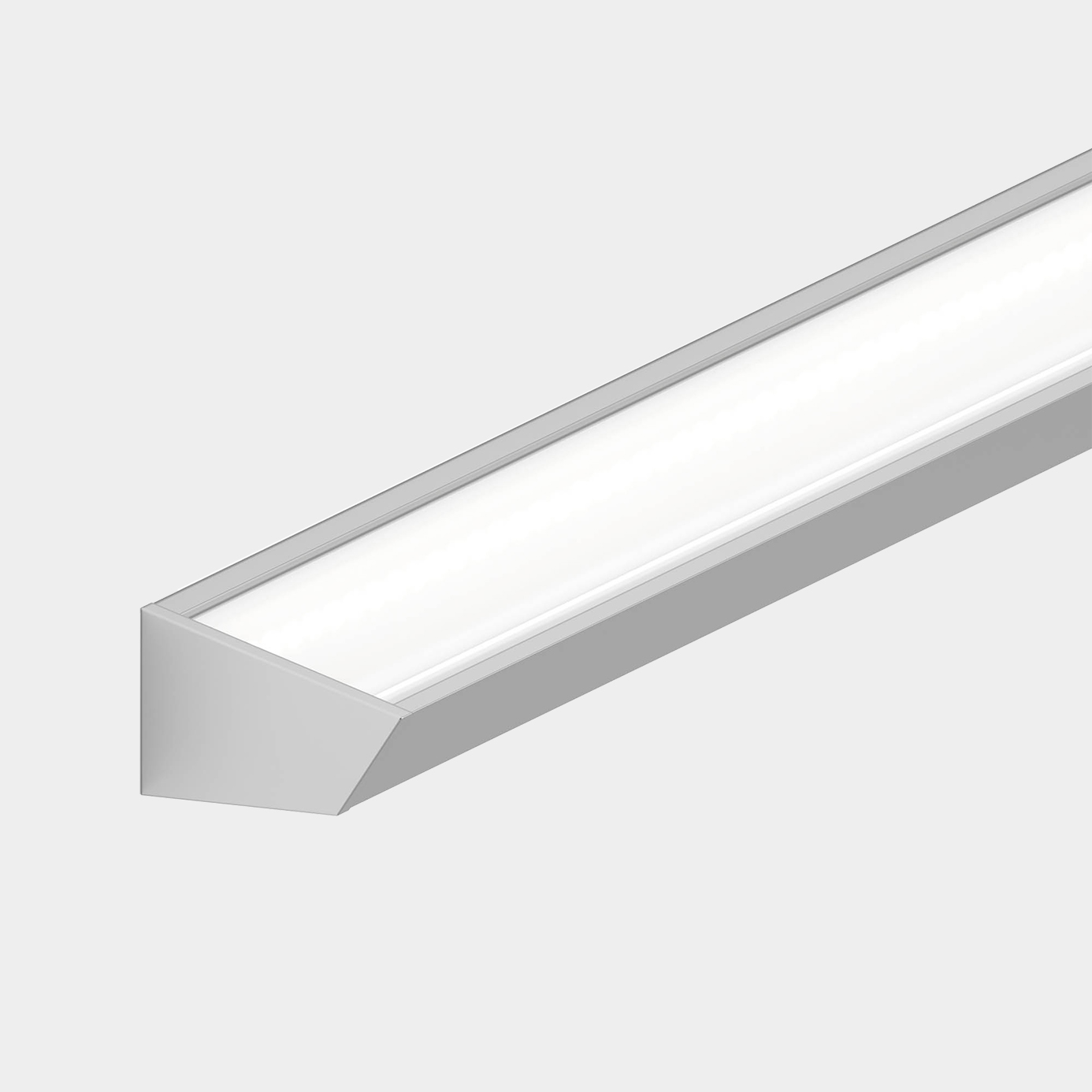

mCove is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. It is available with RGB LEDs for vivid, saturated color, RGBW LEDs delivering rich whites alongside color, smart Pixel LEDs enabling dynamic, addressable color effects, Tunable White LEDs offering precise CCT control, Warm Dim LEDs that smoothly dim from warm to ultra-warm color temperatures; long throw and tall throw reflectors; High Efficacy static white LEDs optimized for long runs and best-in-class efficacy, Vibrant Color static white LEDs with maximum 72 LEDs per foot for exceptional color quality and no visible dotting. The fixture delivers dot-free, even illumination with a frosted lens and supports linked runs for continuous lines of light. Additional highlights include 24VDC Class 2 fixtures made to order up to 144”. mCove – Static White is a linear luminaire designed for architectural surface and millwork applications where clean lines and visual comfort are essential. Proudly assembled in the USA.

  • Finishes: Paint Ready
  • CCT: 1800K, 1800K-2400K, 1800K-2700K, 1800K-3000K, 2200K, 2400K, 2700K, 2700K-6500K, 3000K, 3500K, 4000K, 4100K, RGB3000K
  • CRI: 98
  • Output Per: 3287.4 lm/m, 1002 lm/ft, 3391.5 lm/m, 1034 lm/ft, 380.6 lm/m, 116 lm/ft, 4084.6 lm/m, 1245 lm/ft, 423.1 lm/m, 129 lm/ft, 501.8 lm/m, 153 lm/ft, 557.7 lm/m, 170 lm/ft, 623.2 lm/m, 190 lm/ft, 629.8 lm/m, 192 lm/ft, 761 lm/m, 232 lm/ft, 912.1 lm/m, 278 lm/ft, 918.4 lm/m, 280 lm/ft, 974.2 lm/m, 297 lm/ft, 1043 lm/m, 318 lm/ft, 1174.5 lm/m, 358 lm/ft, 1243.4 lm/m, 379 lm/ft, 1295.6 lm/m, 395 lm/ft, 1309.1 lm/m, 399 lm/ft, 1542 lm/m, 470 lm/ft, 1669.9 lm/m, 509 lm/ft, 1712.2 lm/m, 522 lm/ft, 1741.7 lm/m, 531 lm/ft, 2070.2 lm/m, 631 lm/ft, 2086.6 lm/m, 636 lm/ft, 2473.8 lm/m, 754 lm/ft, 2739.5 lm/m, 835 lm/ft, 2755.9 lm/m 840 lm/ft
  • Mounting: Wall
  • Input Voltage: Low Voltage
  • Wattage Per: 3.3 W/m, 1 W/ft, 32.8 W/m, 10 W/ft, 6.7 W/m, 2 W/ft, 9.8 W/m, 3 W/ft, 13.1 W/m, 4 W/ft, 16.4 W/m, 5 W/ft, 19.7 W/m, 6 W/ft, 23 W/m, 7 W/ft, 26.3 W/m, 8 W/ft, 29.5 W/m 9 W/ft
  • Lens Aperture: 66 mm 2.60 inch
  • Operating Temperature: -13°F to 104°F, -13°F to 113°F, -13°F to 122°F, -13°F to 86°F, -13°F to 95°F
  • Manufacturing Details: Made in America
  • Warranty: 7 years
  • Color: Pixel, RGB/RGBW, Static White, Tunable White, Warm Dim
  • Type: Linear Fixture
  • Rating: Damp
  • Size: 66 mm 2.60 in
  • Height: 38.1 mm 1.50 in
  • Lens: Long Throw Reflector, Tall Throw Reflector
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Product Number: M
